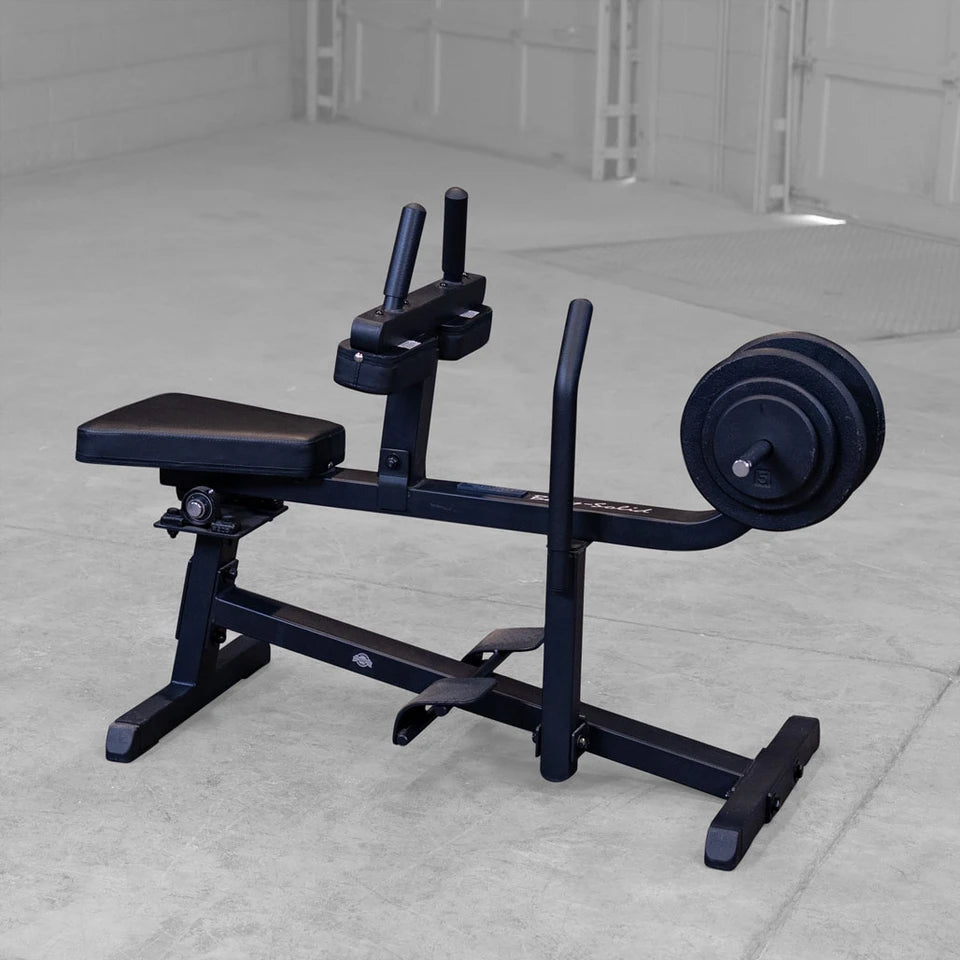

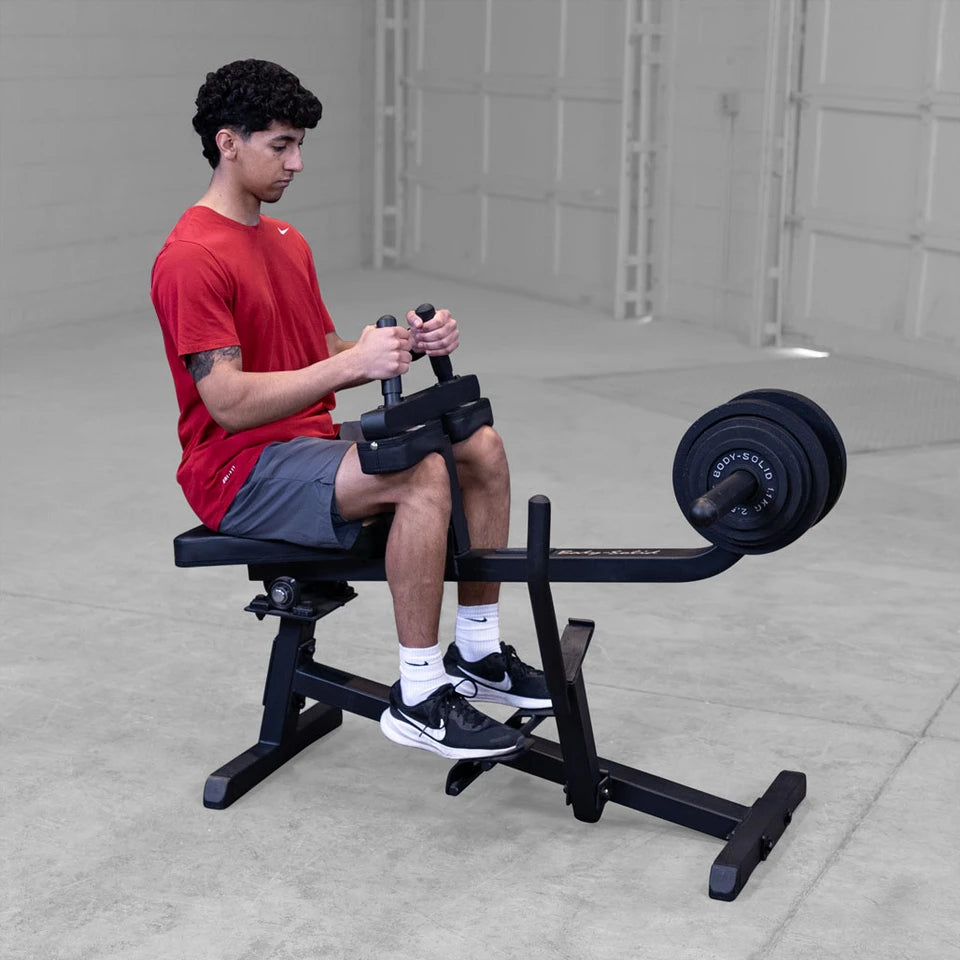

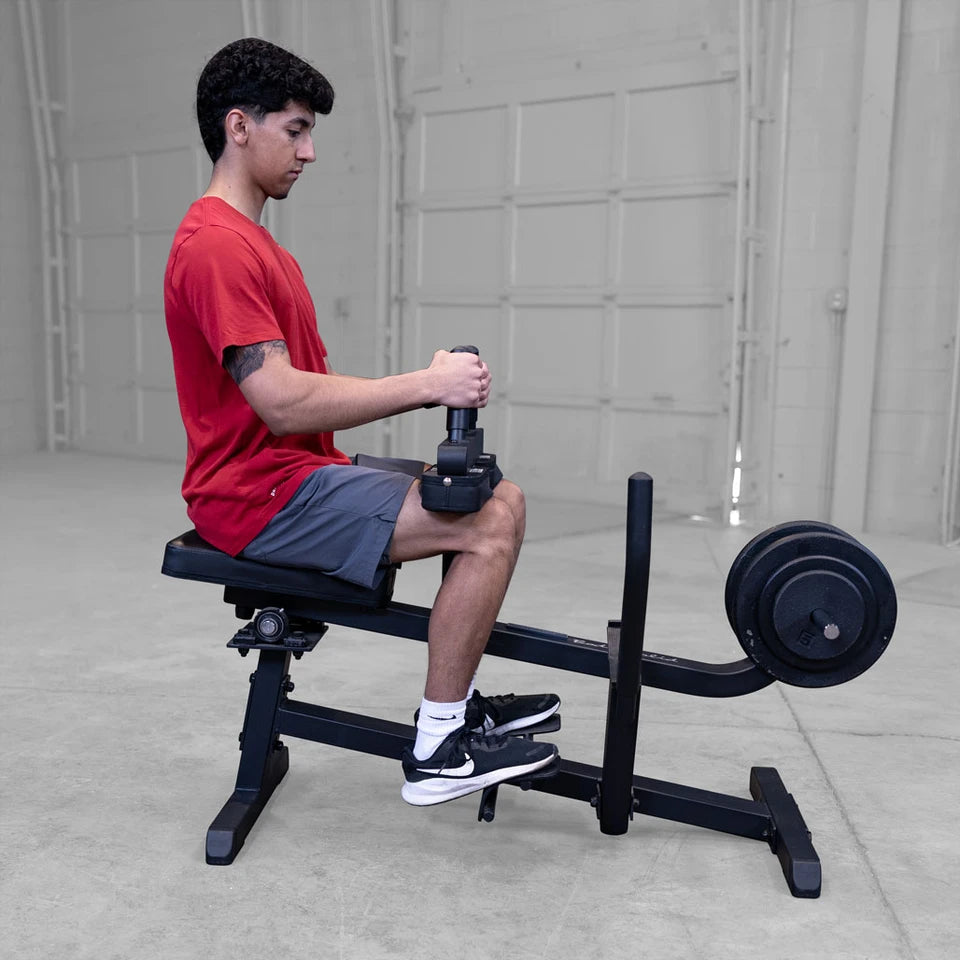

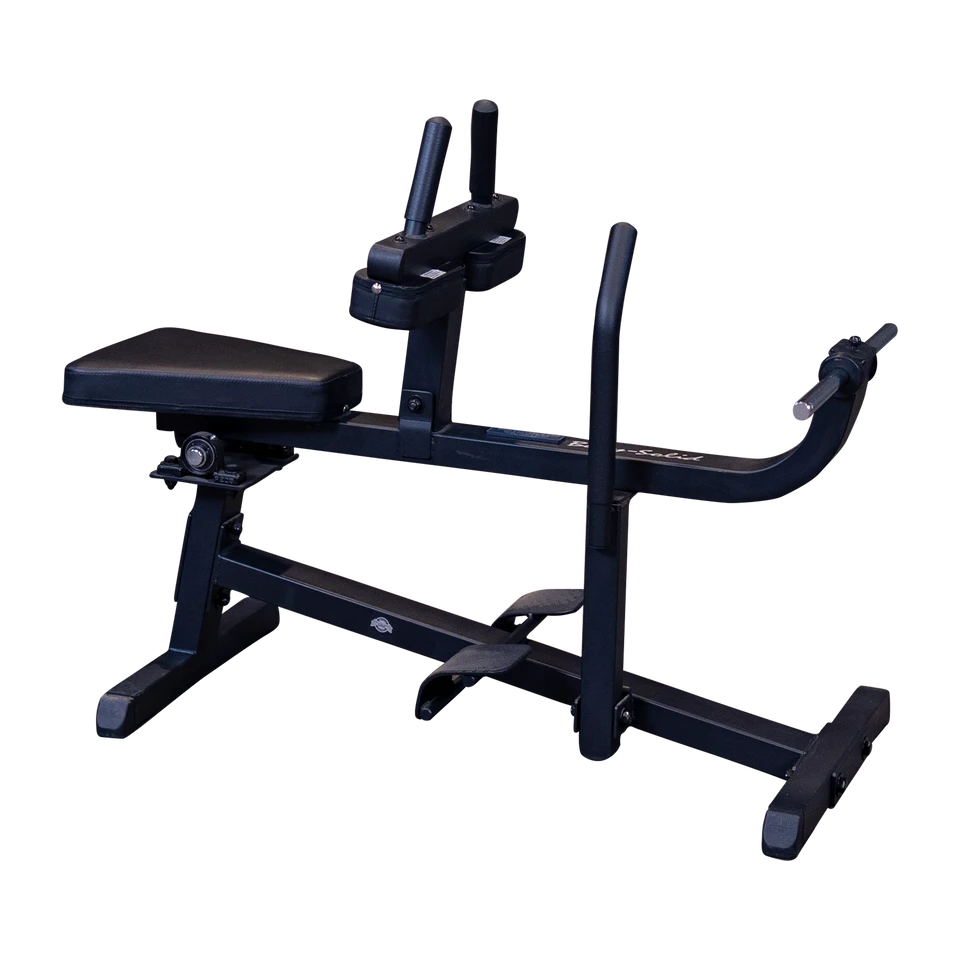

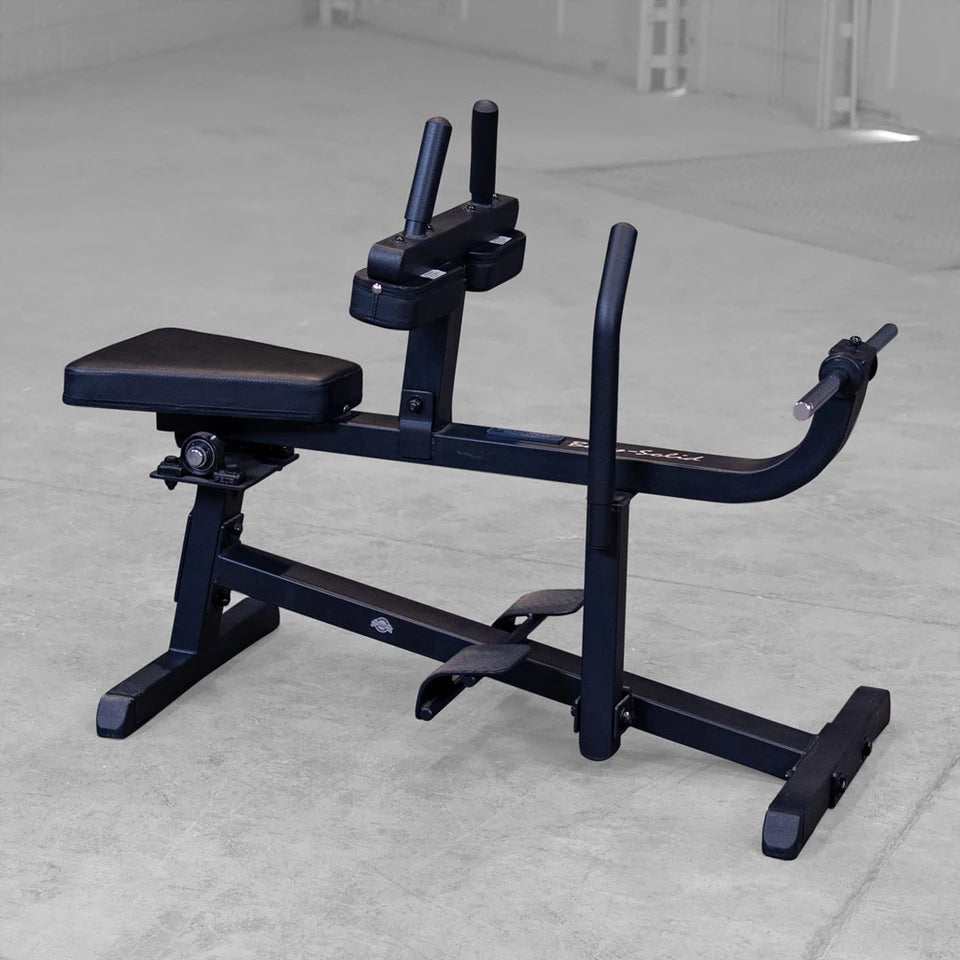

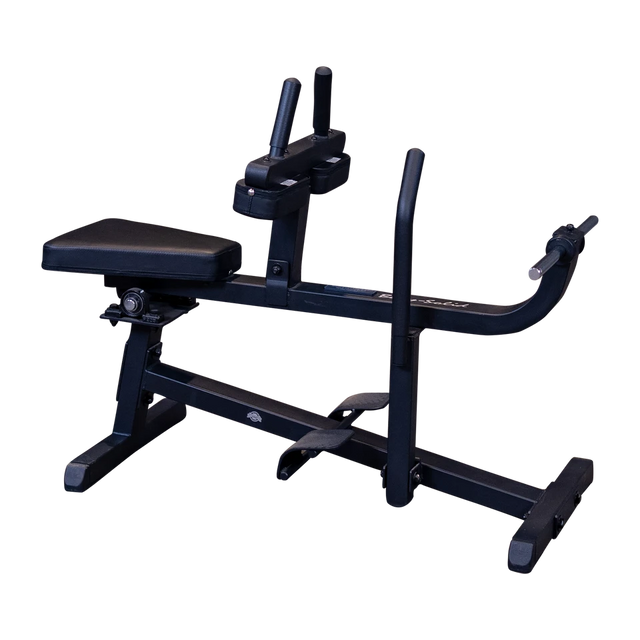

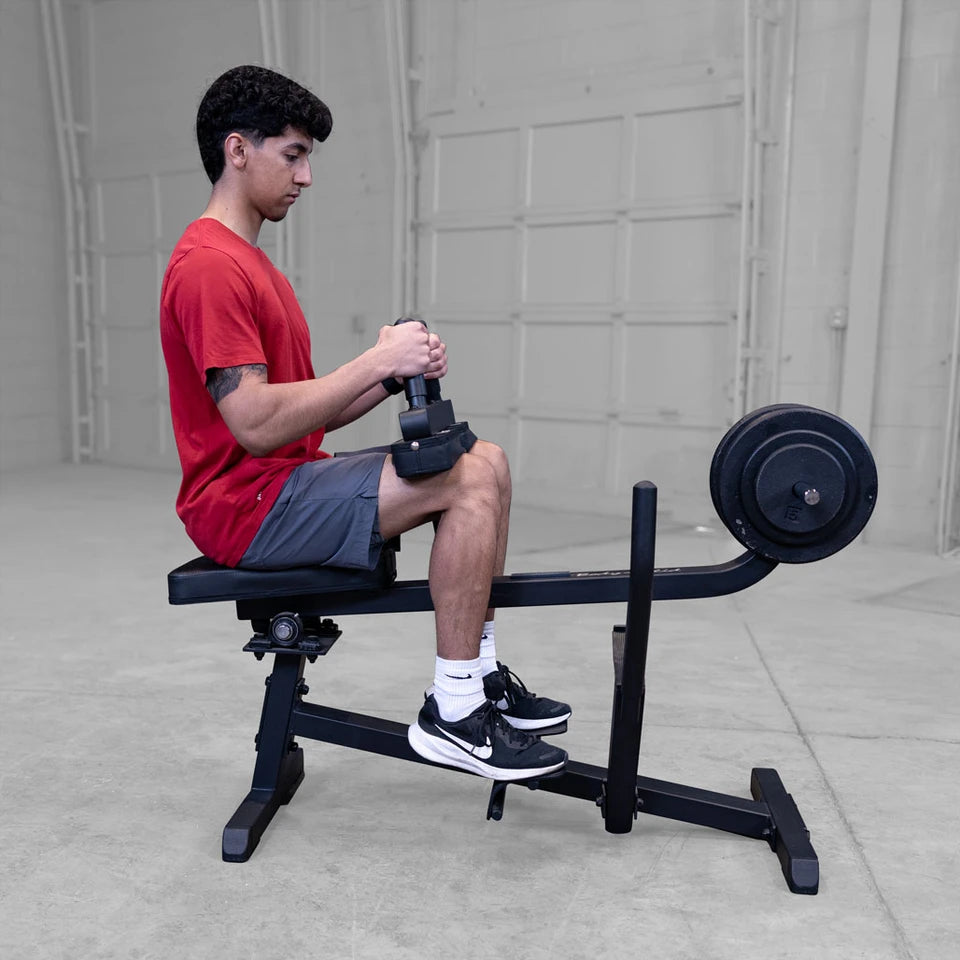

Body-Solid GSCR349B Seated Calf Raise

The Body-Solid GSCR349B Seated Calf Raise is a commercial plate-loaded calf machine designed for focused calf development, lower leg strength training, and high-use gym environments.

Built with a 2” x 3” 11-gauge high-tensile steel frame, 3:1 weight ratio, precision pillow block bearings, sealed ball bearings, angled no-slip foot platform, and thick DuraFirm padding, the GSCR349B delivers smooth seated calf raise performance for commercial gyms and serious home gyms.

Key Features

• Commercial seated calf raise design isolates the calf muscles for focused lower leg strength training.
• 3:1 weight ratio helps develop powerful calves while supporting heavy plate-loaded workouts.
• Precision pillow block bearings and sealed ball bearings provide smooth movement under heavy loads.
• Angled no-slip foot platform supports full range of motion and reduces stress compression on the ball of the foot.
• 2” x 3” 11-gauge high-tensile strength steel frame is built for high-traffic gyms and clubs.
• Full 3” thick DuraFirm knee pads and seat pad provide durable comfort during heavy calf training.
• Adjustable design accommodates users of different sizes for better positioning and training control.

Exercises

Use the GSCR349B for seated calf raises, soleus-focused calf training, lower leg strengthening, ankle extension work, calf hypertrophy training, and progressive plate-loaded calf workouts.

Who This Is For

This seated calf raise machine is ideal for commercial gyms, health clubs, school weight rooms, training studios, apartment fitness centers, and serious home gym users who want a durable lower leg machine for targeted calf development.

Specifications

• Application: Commercial
• Exercise Focus: Legs, calves, lower leg strength training
• Type: Leg machine, plate-loaded seated calf raise machine
• Dimensions: 47.00” L x 23.00” W x 39.00” H
• Product Data Sheet Dimensions: 47” L x 20” W x 39” H
• Product Weight: 93 lbs. / 42.18 kg
• Product Data Sheet Weight: 95 lbs.
• Frame: 2” x 3” 11-gauge high-tensile strength steel
• Resistance Ratio: 3:1 weight ratio
• Movement System: Precision pillow block bearings and sealed ball bearings
• Foot Platform: Angled no-slip foot platform for full range of motion
• Padding: Full 3” thick DuraFirm knee pads and seat pad
• Adjustment: Adjustable for users of different sizes
• Finish: Black, new in 2024
• Weight Post: Standard size 1” plate post
• Olympic Adapter Sleeve: Optional and sold separately
• Weight Plates and Collars: Sold separately
• Assembled Dimensions: 47.00 in / 1,193.80 mm L x 23.00 in / 584.20 mm W x 39.00 in / 990.60 mm H
• Package Dimensions: 45.28 in / 1,150.11 mm L x 16.54 in / 420.12 mm W x 11.02 in / 279.91 mm H
• Package Volume: 4.78 ft³ / 0.14 m³

Warranty

Backed by Body-Solid Commercial Warranty and Body-Solid Lifetime Warranty coverage. Commercial warranty coverage includes lifetime coverage on frame and welds, 3 years on bushings and hardware, and 1 year on pads, cables, and grips. Lifetime warranty coverage may also apply by use setting and warranty type.

Frequently Asked Questions

Is the Body-Solid GSCR349B suitable for commercial gyms?
Yes. The GSCR349B is built for commercial use with an 11-gauge steel frame, pillow block bearings, sealed ball bearings, heavy-duty padding, and Body-Solid commercial warranty coverage.

What muscles does the GSCR349B target?
The GSCR349B targets the calves, especially during seated calf raise movements that emphasize lower leg development and soleus engagement.

What does the 3:1 weight ratio mean?
The 3:1 ratio means the machine is designed to create heavy calf training resistance through its plate-loaded leverage system.

Are weight plates included?
No. Weight plates, collars, and Olympic adapter sleeves are sold separately.
