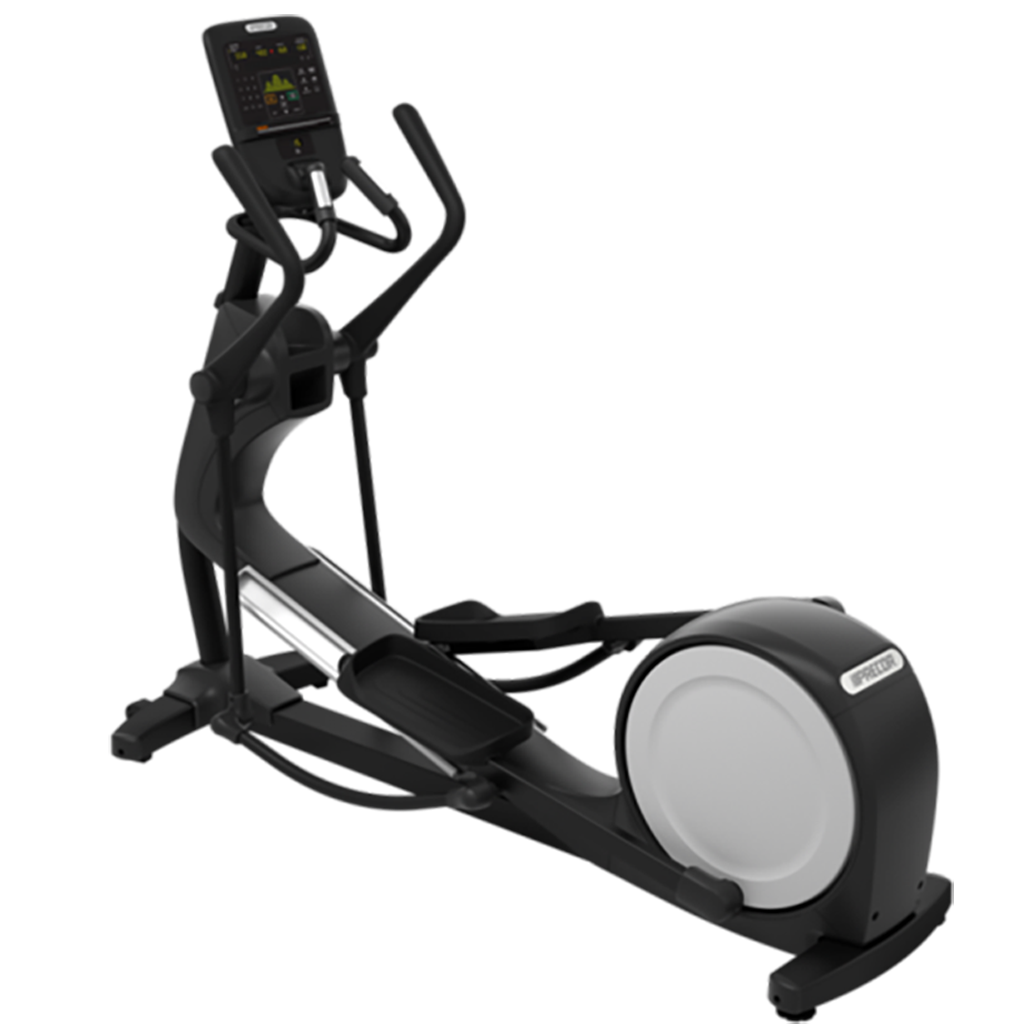

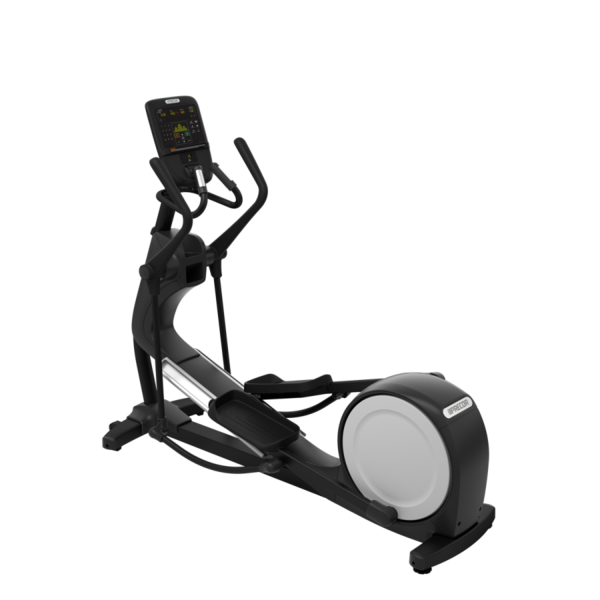

Elliptical Fitness Crosstrainer
The EFX® 731 combines reliability with with the basics done right approach to give you the perfect elliptical at a budget-friendly price for your facility. Carrying on the tradition of Precor reliability and service, the EFX is easy to clean and maintain, including the convenience of the Active Status Light - all to improve your ownership experience. For exercisers, the EFX 731 combines the benefits of a fixed ramp with our patented elliptical stride path technology and moving handlebars for a total-body workout. The P31 LED console provides exercisers essential workout metrics for an effective fitness experience.
Features
Fixed Ramp with Patented Stride Technology
The 700 Line EFX ramp is fixed at 20 degrees, providing an optimal balance between quadriceps and glute activation. Our patented stride path technology provides a non-impact workout that reduces joint stress while helping exercisers achieve their cardiovascular goals.
With moving handlebars users can push and pull with their upper body to achieve a complete workout.

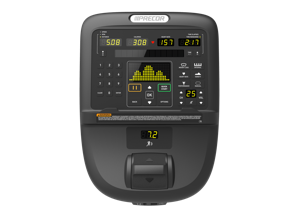

Finally, an LED console that works harder for you, your servicers, and your exercisers. Get integrated asset management to supercharge your service techs with extra information, right at their fingertips. Exercisers will enjoy the well-placed channel and volume change controls.
Specifications
Equipment Features
| Covers |
Long lasting appearance with enclosed rear covers, and covered frame and pivot joints.
Easy to clean without removing the ramp cover or pedals.
Rear access cover can be removed and replaced in less than 2 minutes by removing only two screws. Convenient access to check and adjust drive belt tension. |
| Accessories Holder(s) |
Thoughtful, secure storage with a logical, clean place for a water bottle, cell phone, and other accessories. |
| Transport Wheels |
Wide transport wheels in the front of the EFX® allow the unit to be moved when cleaning the floor. |
| Bearings |
In-line polyurethane wheels with over-sized axles and premium sealed bearings provide a perfectly balanced load, gliding on precision extruded aluminum tracks for an incredibly smooth feel. |
| Foot Pedals |
Oversized, polypropylene foot pedals fit your largest user and are easy to clean. |
| Ramp |
Fixed ramp |
| Biomechanics |
Biomechanics validated by a Washington state university for users of all ages, fitness levels and sizes, from females in the 5th percentile and males in the 95th percentile. |
| Ramp Angle |
20 Degrees Fixed |
| Upper Body Handlebars |
Moving handlebars |
| CrossRamp® Technology |
Fixed ramp incline for users helps provide an optimal balance between quadriceps and glute activation. |
Resistance System
| Minimum Watts |
18 |
| Maximum Watts |
720 |
| Resistance System |
Durable, 3-phase hybrid generator / eddy current system with new, faster controller provides 20 levels to tailor workouts with consistent, smooth resistance. The 20 resistance levels range from 18 watts (level 1 at 40 SPM) to 720 watts (level 20 at 200 SPM). |
| Resistance Levels |
1-20 |
Console Features
| Numeric Keypad |
Yes |
| Motion Controls |
Yes |
| QuickStart™ |
Yes |
| Console Language(s) |
English, French, German, Italian, Japanese, Portuguese, Russian, Spanish |
| Units Selection |
Metric or U.S. Standard |
| Maximum Workout Time |
Unlimited |
| Electronic Readouts |
Resistance Level
Distance, Strides/Min, Total Strides
Calories
Heart Rate
Time Remaining, Time Elapsed
% Complete, Time in Zone, Segment Time Remaining, Average Speed (strides per min), Calories / min, Calories / hour, Watts, METS, Target HR, Average HR |
| Console Type |
LED |
| Preset Programs |
9 programs accessed by 6 workout keys:
Weight Loss
Weight Loss
Heart Rate
Basic HRC
Performance
Hill Climb
Fitness Test
Cross Training
Variety
Cross Country
Gluteal
Interval
Manual
|
| Pause Range |
1 to 60 seconds |
| Default Pause Setting |
30 seconds |
Heart Rate Monitoring
| Touch |
Handheld heart rate sensors located on fixed handlebars for increased accuracy and ease-of-use by users of all sizes. |
| Telemetry |
Equipped for heart rate telemetry reading using a chest strap. |
| Heart Rate Sensor Advisory |
The heart rate features are intended for reference only. They may not be accurate for every user or at every speed and are not intended for use as a medical device. Holding the heart rate handle touch sensor while exercising at higher intensity may also decrease accuracy of the heart rate reading and is not recommended. Please also read the product documentation and our Freqently Asked Questions.
|
Integrated Entertainment Options
| Mobile Device Charger |
Yes |
| Reading Rack |
Standard |
| Personal Viewing System (PVS) |
LED |
| Personal Viewing Screen (PVS) (Specification) |
15.6 inch / 39.6 cm screen |
| Entertainment Cap / Wireless Receiver |
Optional |
Network Capabilities
| Diagnostics |
Ability to set club parameters, e.g. to limit exercise time and pause time. |
| CSAFE Enabled |
Yes |
Equipment Specifications
| Minimum Space Between Foot Pedals (inches / cm) |
1.5 in / 3.8 cm |
| Maximum User Weight |
350 lbs / 159 kg |
| Foot Pedal Dimensions (inches / cm) |
16 x 8 in / 40.6 x 20.3 cm |
| Step-up Height (footplate at lowest position) |
8 in / 20 cm |
| Stride Length |
21 in / 54 cm |
| Standard Frame Colors |
Gloss Metallic Silver
Black Pearl |
Equipment Dimensions and Weight
| Height with PVS |
81 in / 206 cm |
| Length |
80 in / 203 cm |
| Width |
28 in / 71 cm |
| Height |
69 in / 175 cm |
| Equipment Weight |
278 lbs / 126 kg |
Shipping Dimensions and Weight
| Length |
85 in / 216 cm |
| Width |
29 in / 78 cm |
| Height |
28 in / 71 cm |
| Shipping Weight |
354 lbs / 160 kg |
Power Requirements
| Equipment |
Self-Powered |
| International 240 VAC |
Applicable country-specific power cord |
| Personal Viewing Screen (PVS) |
Powered |
| Optional Power Supply |
Optional power supply available if long time periods of no use or need display to be continuously lit longer than 30 seconds after workout ends. |
| U.S. & Canada 120 VAC |
120V/15A circuit with 5-15R NEMA receptacle |
Regulatory
| FCC |
FCC |
| ETL |
ETL |
| CE |
CE |
| EN957 |
EN 957 / ASTM |
